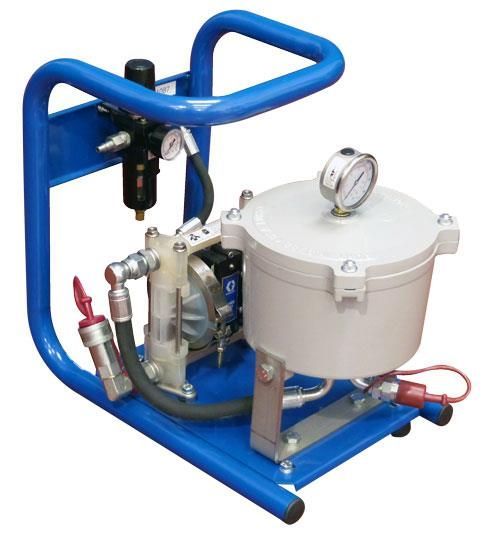

MS1 Air Driven Oil & Diesel Filtration System

Unit Hire Price is for weekly charge, for additoinal weeks hire please select .

Carriage Price includes collection & delivery

Before hiring a filtration system it is strongly advised that laboratory analysis is carried out before begining filtration and after the job iscompleted.

Filtration Capabilities & Features

Suitable for Filtration of: Diesel Fuel, Light Oils to 220 grade & Coolants (when fitted with the 2088PP filters)

Tank Size: For use with Drums, IBCs & tanks up to 750Litres

Flow Rate: 400-600 Litres per hour (based on diesel at ambient temperature)

Filter Housings: The unit is fitted with a single 9788 housings suitable for use our main range of filter cartridges.

Pump: Tapflox TX70 diaphragm pump and Air ControlRegulator

Filters Options

1888H – Standard Filter Cartridge ideal for removing particulate and water contamination. Suitable for use on Diesel Fuel & Lube oils.

1888SPT – Polishing Filter Cartridge, once the main filtration has been carried out these filters are able to provide additional filtration further reducing the particulate and water levels. Important DO NOT use these filters for the main filtration job as they will blind very quickly and are designed for polishing.

2088PP – These filters are for use with water-based fluids such as coolants & glycol, they WILL NOT remove any water but will remove particulate contamination.

The MS1 Carry Frame Filtration Units are the ideal units for providing filtration of diesel fuel and oils up to 220 viscosity grade. Standard 1888 group of filter cartridges are for oils and diesel fuel and when used with the 2088PP & 2088PP6 filter cartridges these units will also filter water based fluids such as Glycol & fire retardant oils. The Single Units are ideal for routine maintaining fuel in small storage tanks and IBC’s. They can also be used for providing permanent filtration and can be sited next to tanks continually circulating fluids. Being built on a strong robust carry frame and weighting 24Kg these units are transportable to even the most hard to access areas.

Operating Temperatures: Within operating specifications of engine, gear and hydraulic oils.

Filtration Level: Particulate contamination in accordance with BS 5540 part 4: 1981 and ISO/DIS 4406. ISO equivalent to NAS 1638 class 6. (Hydraulic oil specification)

Hire Systems come fitted with the requested filters & 2 x 3m suction and return lines ready for use.
