Filter Elements

Filter Elements & Housings

We provide a wide selection of filter elements ideal forvarious applications across different industries. We stock filter elements ranging from cartridge and bag filters designed to remove water and heavy particulate contamination from fluid streams to high-powered magnetic filter systems capable of eliminating up to 99.99% of ferrous debris. These solutionshelp prevent additional scouring and abrasions to components, ensuring the successful implementation of any fluid condition monitoring. Think FA-ST for all your industrial or mechanical filtration needs.

Filter Element & Housing Selection:

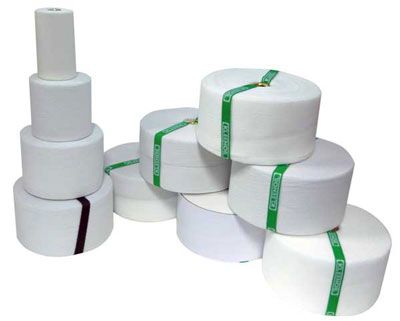

Kleenoil Filter Cartridge Collection

Cartridge Filters

Oil & Fuel Filter Cartridges

Button
High Pressure and Standard Magnetic Filtration Systems

Magnetic Filters

Magnetic Filtration Systems

Button
Slection of Bag Filters

Bag Filters

Bag Filters

Button

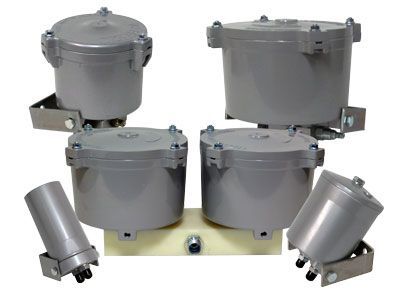

Oil Bypass Filter Units

Bypass Filters

Button

Oil, Fuel & Fluid Filter Cartridges

Our range of fluid filter cartridges are designed for optimal performance, using tightly wound materials to ensure the highest level of filtration. When combined with the specialized cartridge disks, they are highly effectively entrapping harmful particles to 1μm nom, 3μm absolute that may have infiltrated the fluid reservoir. In addition to solid contaminants, the filter cartridges are capable of extracting other impurities, such as water, enabling you to maximize the efficiency and lifespan of your oils and fuels.

We offer a range of filter cartridges especially designed for a range of applications:

1878 Filter Cartridge Group

Engine Bypass Filters

The engine bypass filters are ideal for providing additional levels of filtration to engine oils.
9788 Filter Cartridge

Diesel Fuel Filters

Prevent water and particulates building in your storage tanks keeping the fuel in good working order.
9788 Filter Cartridge

Water Based Fluids

Made from special materials allowing water to pass but still retaining the particale colllection qualities.
9788 High Visc Cartridge

High Viscosity Fluids

Gear and transmissions can be difficult to filter due to the high viscosities, see how our high viscosity oil filters can deal with these issues.
9788 Filter Cartridge

Magnetic Filtration Systems

Magnetic Filters are the environmentally ethical solution for anyone working with metal storage tanks and heating and cooling systems where rust build-up is common. These filters utilize extremely high-powered magnets capable of removing up to 99.99% of ferrous debris from circulating systems. Simple to use, they feature parts that can be cleaned and reused, eliminating the need for frequent replacements. This makes magnetic filters an efficient and cost-effective choice for a wide range of applications. The magnetic units come in 3 different sizes to suite your needs: 5", 10" & 20" designs are available.

Standard MicroMag Magnetic Filter Collection

Standard Magnetic Filtration System

  • Suitable for use on systems up to 12 bar
  • Available in 5”, 10” & 20”
HP50 MicroMag Magnetic Filter Collection

HP50 Magnetic Filtration System

  • Suitable for use on systems up to 50 bar
  • Available in 5”, 10” & 20”

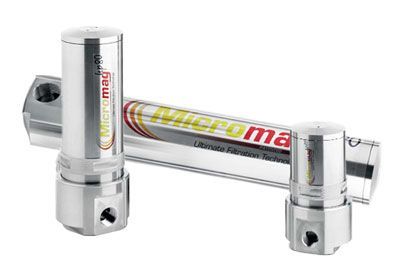

HP80 MicroMag Magnetic Filter Collection

HP80 Magnetic Filtration System

  • Suitable for use on systems up to 80 bar
  • Available in 5”, 10” & 20”

Bag Filters & Housings

Bag filters allow for the capturing of large amounts of sediment without reducing the flow of the system. This is due to the large surface area of the bags mean when contaminates are taken out of the fluid steam they remain in the bag while the fluid can flow around the obstruction. Due to this the bag filters are an excellent addition to any filtration system that deals with heavy contaminated fluids in dusty environments.

Bag Filter Housing

Bag Filter Housings

Breathtaking colors of our planet
Button

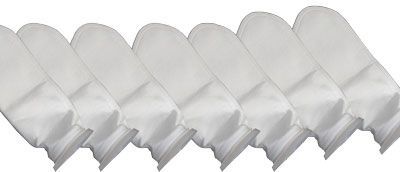

1 Micron Bag Filters

Replacement Bag Filters

Bypass Filter Units

We offer a selection of Bypass Filter Units designed for both engines and hydraulic systems. These units provide an additional level of filtration, increasing oil life, reducing system contamination, and helping to reduce wear on components. Installed in a bypass loop, the oil is finely recycled and any water is removed while the equipment operates. This process maintains the oil in a clean, usable condition, significantly extending the oil drain interval.

Engine Bypass Filters

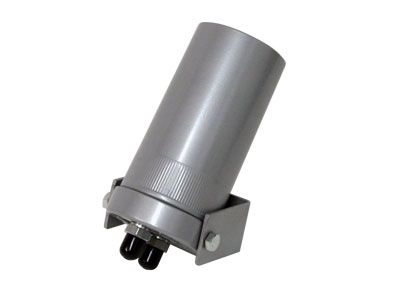

9758 Micro Duty Engine Bypass Filter Units

9758 Micro Duty

For use with light domestic vehicles, sump capacity of up to 6 litres.

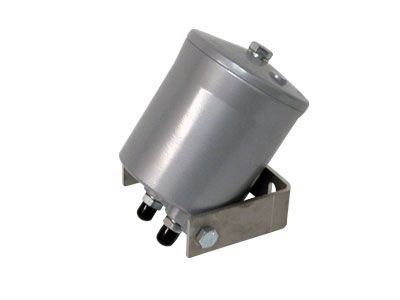

9768 Light Duty Engine Bypass Filter Units

9768 Light Duty

For use with medium to large domestic vehicles with sump capacity of up to 16 litres.
9778 Heavy Duty Engine Bypass Filter Units
9788 Super Duty Engine Bypass Filter Units

9788 Super Duty

For use with industrial and plant equipment with sump capacity of up to 80 litres.

Bypass Filter for Hydraulic Systems

The Hydraulic Bypass Filter Units come fitted with a pressure relief valve allowing for oils in systems running up to 200 bar can be filtered.

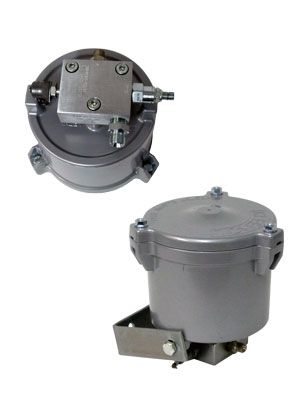

9778 Hydraulic Bypass Filter Units, showing top view and bottom with pressure relief valve

9778 Heavy Duty Hydraulic Bypass Filter

The unit is ideal for providing filtration hydraulic storage tanks of up to 540 litres.

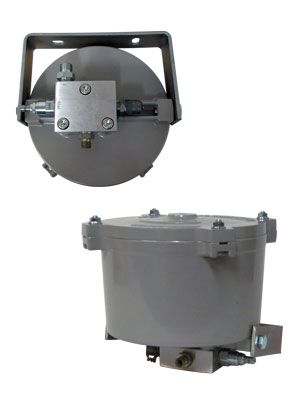

9778 Hydraulic Bypass Filter Units, showing top view and bottom with pressure relief valve.

9788 Super Duty Hydraulic Bypass Filter

The unit is ideal for providing filtration hydraulic storage tanks of up to 1360 litres.
