MS2 110v Twin Housing Diesel & Light Oil Filtration System - With Bag Filter

Unit Hire Price is for weekly charge, for additoinal weeks hire please select .

Carriage Price includes collection & delivery

Before hiring a filtration system it is strongly advised that laboratory analysis is carried out before begining filtration and after the job iscompleted.

Filtration Capabilities & Features

Suitable for Filtration of: Diesel Fuel, Light Oils to 46 grade & Coolants (when fitted with the 2088PP filters)

Tank Size: For use with Drums, IBCs & tanks up to 1500Litres

Flow Rate: 800 – 1200 Litres per hour (based on diesel at ambient temperature)

Filter Housings: The unit is fitted with twin 9788 housings suitable for use our main range of filter cartridges.

It also has the 12” bag filter housing fitted providing additional level of filtration, increasing the ability to remove more contaminates in a single pass and increase the life span of the filter cartridges.

Filters Options

1888H – Standard Filter Cartridge ideal for removing particulate and water contamination. Suitable for use on Diesel Fuel & Lube oils.

1888SPT – Polishing Filter Cartridge, once the main filtration has been carried out these filters are able to provide additional filtration further reducing the particulate and water levels. Important DO NOT use these filters for the main filtration job as they will blind very quickly and are designed for polishing.

2088PP – These filters are for use with water-based fluids such as coolants & glycol, they WILL NOT remove any water but will remove particulate contamination.

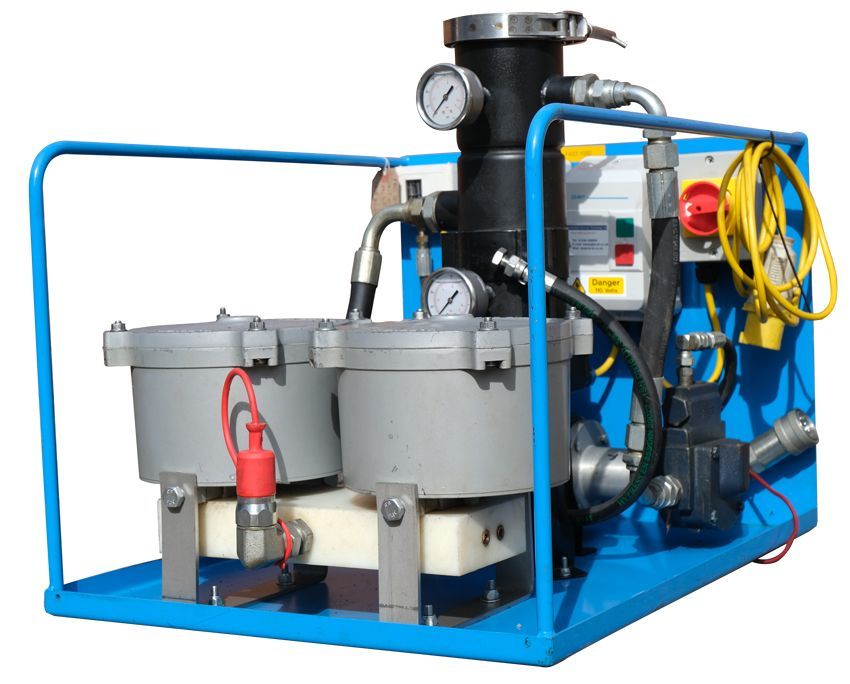

A simple free-standing, offline, fluid cleaning rig, used for transfer or filtration of fluids. Built on a portable skid frame fitted with a heavy-duty Haight 8U gear pump, 110-volt motor, Twin KLEENOIL 9788 super duty filter units fitted with 1888H filter cartridges. This unit is also fitted with a 12” Bag Filter housing to remove additional particulate contaminates from fluids. Electrics consist of an on/off control, RED LED Power on, GREEN led running light, isolator/emergency stop switch, pressure relief switch, pressure gauge, and supplied with our standard hydraulic 3 metre suction and return lines, complete and ready to use. Quick Release Couplings fitted to the unit and to the hose assemblies are all supplied with dust caps and plugs. All units are built in house and fully tested before dispatch.

Operating Temperatures: Within operating specifications of engine, gear and hydraulic oils.

Filtration Level: Particulate contamination in accordance with BS 5540 part 4: 1981 and ISO/DIS 4406. ISO equivalent to NAS 1638 class 6. (Hydraulic oil specification)

Hire Systems come fitted with the requested filters & 2 x 3m suction and return lines ready for use.
