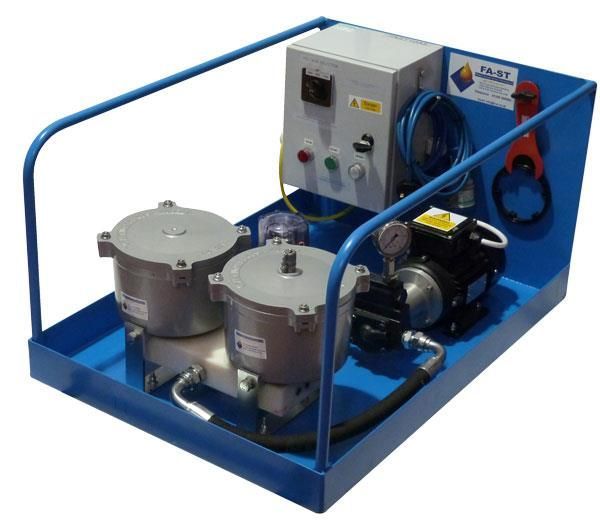

MS2 Dual Voltage Twin Housing Diesel & Oil Filtration System

Unit Hire Price is for weekly charge, for additoinal weeks hire please select .

Carriage Price includes collection & delivery

Before hiring a filtration system it is strongly advised that laboratory analysis is carried out before begining filtration and after the job iscompleted.

Filtration Capabilities & Features

Dual Voltage Power: This unit can be supplied by 240v or 110v power. It is able to run at faster and slower speeds making it the ideal system for filtering anything from coolants to higher viscosity gear oils.

Suitable for Filtration of: Diesel Fuel, Oils to 680 grade (with 1888SH filters) & Coolants (when fitted with the 2088PP filters)

Tank Size: For use with Drums, IBCs & tanks up to 1500Litres

Flow Rate: 800 – 1200 Litres per hour (based on diesel at ambient temperature)

Filter Housings: The unit is fitted with twin 9788 housings suitable for use our main range of filter cartridges.

Magnetic Pre-Filter: The unit comes fitted with a 5" Magnetic Prefilter, these are ideal for removing ferrous debris from systems making this unit ideal for coolants, and fuels where ferrous debris can often occur.

Filters Options

1888H – Standard Filter Cartridge ideal for removing particulate and water contamination. Suitable for use on Diesel Fuel & Lube oils.

1888SPT – Polishing Filter Cartridge, once the main filtration has been carried out these filters are able to provide additional filtration further reducing the particulate and water levels. Important DO NOT use these filters for the main filtration job as they will blind very quickly and are designed for polishing.

2088PP – These filters are for use with water-based fluids such as coolants & glycol, they WILL NOT remove any water but will remove particulate contamination.

1888SH- This filters are seated in a cardboard sleve. This allows an amount of oil to bypass the cartridge preventing the unit building up back pressure and tripping out. Due to the bypassing of oil when using these filters more passes will be required to ensure the oils are fully filltered.

This dual speed will enable the filters to cope with high viscosity oils at low temperatures to maintain filtration at slower speed. With warmer temperatures the higher speed can be selected which can also be used for lower viscosity oils making this a very versatile unit for filtering a large range of oils from very light viscosity diesel up to 680 cst gear oils, With High viscosity Gear Oil we advise removing the quick release couplings as these assists with suction, flow and relieves back pressure particularly if the oils are cold. The twin unit rig will process approx. 360 litres of 220 viscosity gear oil per hour and approx. 180 litres per hour of 320 /460 viscosity gear oil, and 600-700 litres per hour of 32 viscosity oil (all flow rates will vary on temperature). The 5” Magnetic pre-filter will trap all magnetic particles and also protects the Gear Pump. The clear bowl also gives a visual of the oil flow.

Operating Temperatures: Within operating specifications of engine, gear and hydraulic oils.

Filtration Level: Particulate contamination in accordance with BS 5540 part 4: 1981 and ISO/DIS 4406. ISO equivalent to NAS 1638 class 6. (Hydraulic oil specification)

Hire Systems come fitted with the requested filters & 2 x 3m suction and return lines ready for use.
