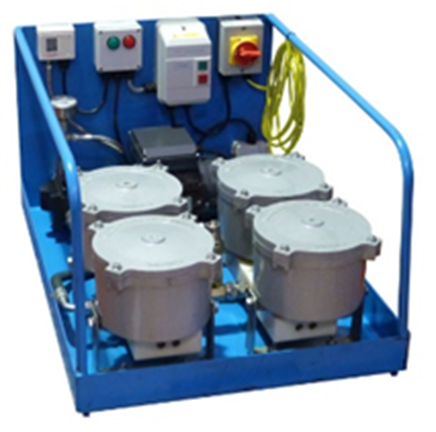

MS4 110v Oil & Diesel Filtration System

Unit Hire Price is for weekly charge, for additoinal weeks hire please select .

Carriage Price includes collection & delivery

Before hiring a filtration system it is strongly advised that laboratory analysis is carried out before begining filtration and after the job iscompleted.

Filtration Capabilities & Features

Suitable for Filtration of: Diesel Fuel, Oils to 120 grade & Coolants (when fitted with the 2088PP filters)

Tank Size: For use with Drums, IBCs & tanks up to 3000Litres

Flow Rate: 800 – 1200 Litres per hour (based on diesel at ambient temperature)

Filter Housings: The unit is fitted with 4 x 9788 housings suitable for use our main range of filter cartridges.

Filters Options

1888H – Standard Filter Cartridge ideal for removing particulate and water contamination. Suitable for use on Diesel Fuel & Lube oils.

1888SPT – Polishing Filter Cartridge, once the main filtration has been carried out these filters are able to provide additional filtration further reducing the particulate and water levels. Important DO NOT use these filters for the main filtration job as they will blind very quickly and are designed for polishing.

2088PP – These filters are for use with water-based fluids such as coolants & glycol, they WILL NOT remove any water but will remove particulate contamination.

The MS4 Heavy Duty Filtration Units are the ideal units for providing filtration on fluids up to 120 viscosity grade. Standard 1888 group of filter cartridges are for oils and diesel fuel and when used with the 2088PP & 2088PP6 filter catridges these units will also filter water based fluids such as Glycol & fire retardent oils. The Four Unit Systems are ideal for routine maintenance of machinery, storage tanks and IBC’s. They can also be used for providing permanent filtration and can be sited next to tanks continually circulating fluids. Being built on a strong robust carry frame the units are easily mounted on to a trolley and can be transported around sites.

These units are highly recommended for maintenance lines & factories with various oil and diesel storage tanks up to 3000.

Operating Temperatures: Within operating specifications of engine, gear and hydraulic oils.

Filtration Level: Particulate contamination in accordance with BS 5540 part 4: 1981 and ISO/DIS 4406. ISO equivalent to NAS 1638 class 6. (Hydraulic oil specification)

Hire Systems come fitted with the requested filters & 2 x 3m suction and return lines ready for use.
