Single Unit All Terrain Diesel & Light Oil Filtration System

Our Single Unit All Terrain diesel and light oil filtration unit is the ideal choice when it comes to providing filtration to small light oil (up to 46 grade) or diesel tanks situated on expansive sites. Originally designed for plant equipment in quarries, these units feature a light-duty pump, enabling efficient filtration of light oils and diesel fuel at a flow rate of approximately 600-800 litres per hour.

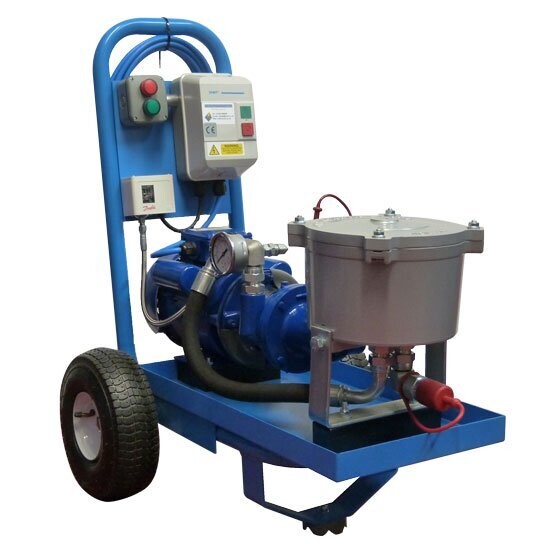

Built on a sturdy all-terrain trolley with large pneumatic wheels, this filtration unit effortlessly traverses challenging landscapes. Equipped with the Kleenoil 9788/KU85 filter housing, it offers flexibility with a wide selection of filter cartridges for various fluid filtration needs.

Not just a filtration unit, these versatile machines also serve as efficient transfer pumps. Simply remove the filter cartridge for seamless transfer between tanks/IBCs, ensuring the transferred oil remains pristine. Invest in this robust solution for on-site fluid management and experience reliable performance in any terrain. Explore our range now for a dependable and versatile filtration solution tailored to your specific requirements.

Filtration

Oil - This unit is suitable to filter oils up to 46 grade viscosity. For filtering oils the 1888H (MAX viscosity 120cSt. For 120cSt and above use 1888SH or 2088CPS ) filter cartridges should be used. For polishing oils the 1888SPT filters should be used. These filters can remove up up 2Kg or dirt and 1 litre of water before requiring replacement.

Diesel - This unit is fine for filtering diesel fuel. For filtering diesel the 1888H filter cartridges should be used. For polishing diesel the 1888SPT filters should be used. These filters can remove up up 2Kg or dirt and 1 litre of water before requiring replacement. When filtering diesel the flow rate will be approx. 600-800 litres per hour.

Coolants & Glycols - These can be filtered in this unit however you MUST use the 2088PP or 2088PP6 filter cartridges as these DO NOT ABSORB WATER making them ideal for coolant filtration and polishing.

Key Features

• Flow Rate - 60-400 litres per hour dependent on viscosity, temperature, degree of contamination, and oil pressure.
• Can be fitted with a 5" MicroMag Magnetic Filter. These will remove can remove 900g of ferrous particles before reaching the oil filter increasing filter cartridge life
• Supplied with 3m suction and return hoses and 1x1888H filter cartridge ready to use.
• This unit come with 1 years warranty as standard.
